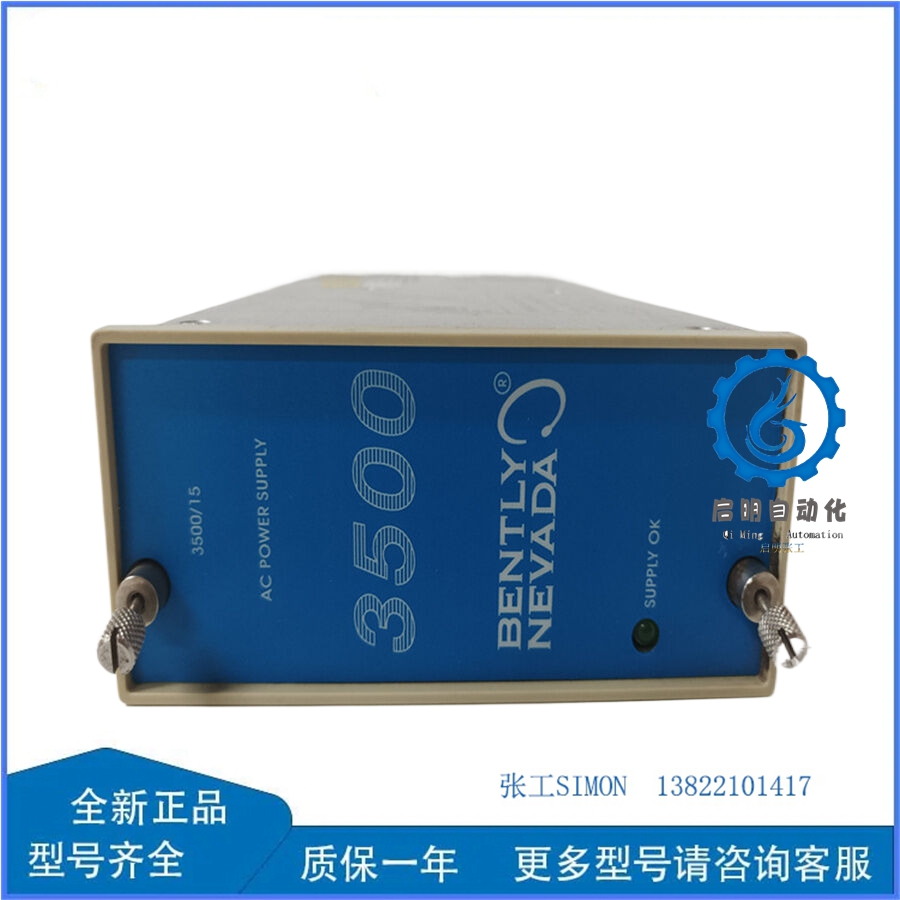

127610-01 3500/15 | Bently Nevada Power Supply Module

The Bently Nevada 127610-01 3500/15 Power Supply Module is a component of the 3500 series manufactured by Bently Nevada. Here is a detailed overview of this power supply module:

Product Identification

• Model Number: 127610-01
• Series: 3500/15
• Manufacturer: Bently Nevada

Design Features

• Modular Design: This power module is a half-height module specifically designed to fit into the dedicated slots on the left side of the rack. The rack can accommodate one or two power supplies (either AC or DC, or any combination of both), with either power supply capable of powering the entire rack.
• Redundancy: When two power supplies are installed in the rack, the lower power supply serves as the primary source, while the upper one serves as a backup. With a second power supply installed, removing or inserting any power module will not interrupt rack operation.

Power Input and Output

• Input Voltage: The power module accepts a wide range of input voltages, such as 100-240 VAC, 50/60 Hz, 2 A.
• Output Voltage: It converts the input voltage to a voltage that can be used by other 3500 modules, typically 24 VDC, 5.5 A.

Performance Characteristics

• Stability and Reliability: The power module provides a stable and reliable power output, fulfilling the power requirements of sensors and monitoring equipment in various vibration monitoring systems.
• Overload and Short-Circuit Protection: The module is equipped with overload and short-circuit protection functions to automatically protect the equipment during overload or short-circuit conditions.

Operating Conditions

• Temperature Range: The module operates within a temperature range of 0°C to 60°C.
• DC Output Stability: ±1%.
• Insulation Resistance: The input and output insulation resistance is 500 VDC, greater than 10 MΩ.

Applications

The Bently Nevada 127610-01 3500/15 Power Supply Module is suitable for various vibration monitoring systems and can meet the power needs of various sensors and monitoring equipment. Its modular design allows for easy configuration and expansion, making it adaptable to different industrial environments.

Additional Notes

• Certification: The product is certified to ensure its quality and performance.
• Warranty: Typically, the product comes with a warranty period, which can vary based on the purchase agreement.

In summary, the Bently Nevada 127610-01 3500/15 Power Supply Module is a robust and reliable power solution designed for use in vibration monitoring systems. Its modular design, redundancy features, and comprehensive protection functions make it an ideal choice for ensuring the continuous and stable operation of industrial equipment.
