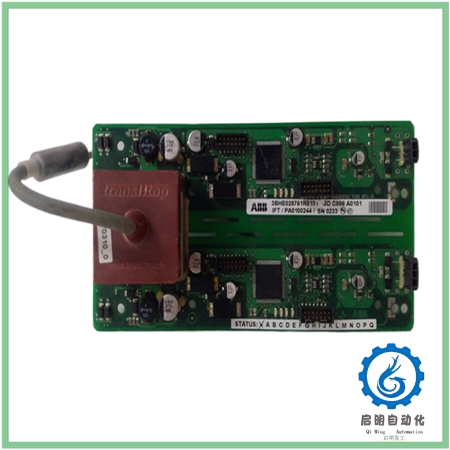

ABB GDC806A0101 3BHE028761R01 模拟量输入功能模块

Description

ABB GDC806A0101 3BHE028761R01 是一个特定的模块型号，以下是对其的详细介绍：

1. 产品概述：
   • GDC806A0101是ABB公司生产的一款模块，可能用于工业自动化领域，作为控制系统的一部分。
2. 技术参数（根据公开发布的信息，这些参数可能因产品批次或更新而有所变化）：
   • 输入电源：AC 220V-25A，50Hz。
   • 具有LCD数字显示功能，量程为0～1000A，分辨率为0.1A，精度为±0.5%。
   • 使用环境温度范围为-10～40℃，相对湿度小于80%。
   • 产品的体积和重量分别为402x232x245mm和30Kg。
3. 功能特点：
   • 该模块可能具备模拟量输入功能，用于接收和处理模拟信号。
   • 模块设计有电源指示信号灯，大电流输出端子，以及电流输出和切除按钮，便于操作和监控。
   • 提供了电流检定调整孔，便于进行计量检定。
4. 应用场景：
   • GDC806A0101模块可能广泛应用于工业自动化控制系统中，特别是在需要精确测量和控制电流参数的场合。
   • ABB GDC806A0101 is a specific module model, and the following is a detailed introduction to it:

     Product Overview:
     GDC806A0101 is a module produced by ABB, which may be used in the field of industrial automation as part of a control system.
     Technical parameters (based on publicly available information, these parameters may vary due to product batches or updates):
     Input power supply: AC 220V-25A, 50Hz.
     Equipped with LCD digital display function, with a range of 0-1000A, a resolution of 0.1A, and an accuracy of ± 0.5%.
     The temperature range for use is -10~40 ℃, and the relative humidity is less than 80%.
     The volume and weight of the product are 402x232x245mm and 30Kg, respectively.
     Functional features:
     This module may have analog input function for receiving and processing analog signals.
     The module design includes power indicator signal lights, high current output terminals, as well as current output and cut-off buttons for easy operation and monitoring.
     Provided with current calibration adjustment holes for easy measurement calibration.
     Application scenario:
     The GDC806A0101 module may be widely used in industrial automation control systems, especially in situations where precise measurement and control of current parameters are required.
